RM16.00
LJ12A3-4-Z/BX LJ12A LJ12A3 NPN M12 6-36VDC 4 Meter Inductive Metal Proximity Detector Detect Sensor Switch Original
Price | RM16.00 |
Product SKU | 40-300030 |
Brand | OEM |
Size (L x W x H) | 6.75 cm x 1.7 cm x 1 cm |
Reward Points | 16 |
Points Needed | 640 |
Availability | 17 |
Quantity |
|
Description
Highlight
- Model: LJ12A3-4-Z/BX
- Type: NPN
- Operating Voltage: 6V to 36V DC
- Output Current: 300mA
- Object Detection: Inductive (Metal)
- Sensing Distance: 4mm

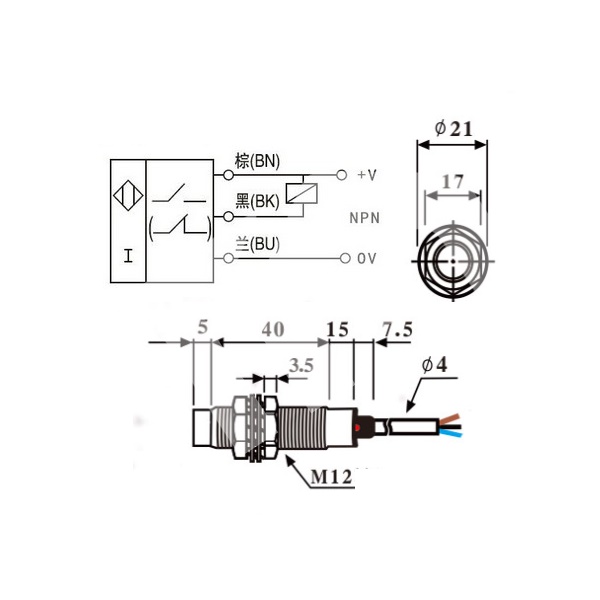

- Dimension: 12mm (D) x 67.5 mm (L)
Description:
A widely used sensor in industrial as can work in harsh environment. Operates under electrical principle of inductance, where a fluctuating current induces an electromotive force (emf) in a target object.Detecting metallic object with high accuraccy compared to other technologies within 4mm range.
Specification:
- Model: LJ12A3-4-Z/BX
- Type: NPN
- Operating Voltage: 6V to 36V DC
- Output Current: 300mA
- Object Detection: Inductive (Metal)
- Sensing Distance: 4mm
- Dimension: 17mm (D) x 67.5 mm (L)
Reviews (0)
view all
back
What's in the box
1 units of LJ12A3-4-Z/BX NPN 6-36VDC Inductive Proximity Sensor
